1966-1967 C2 Corvette Big Block - Pro Series
Radiator

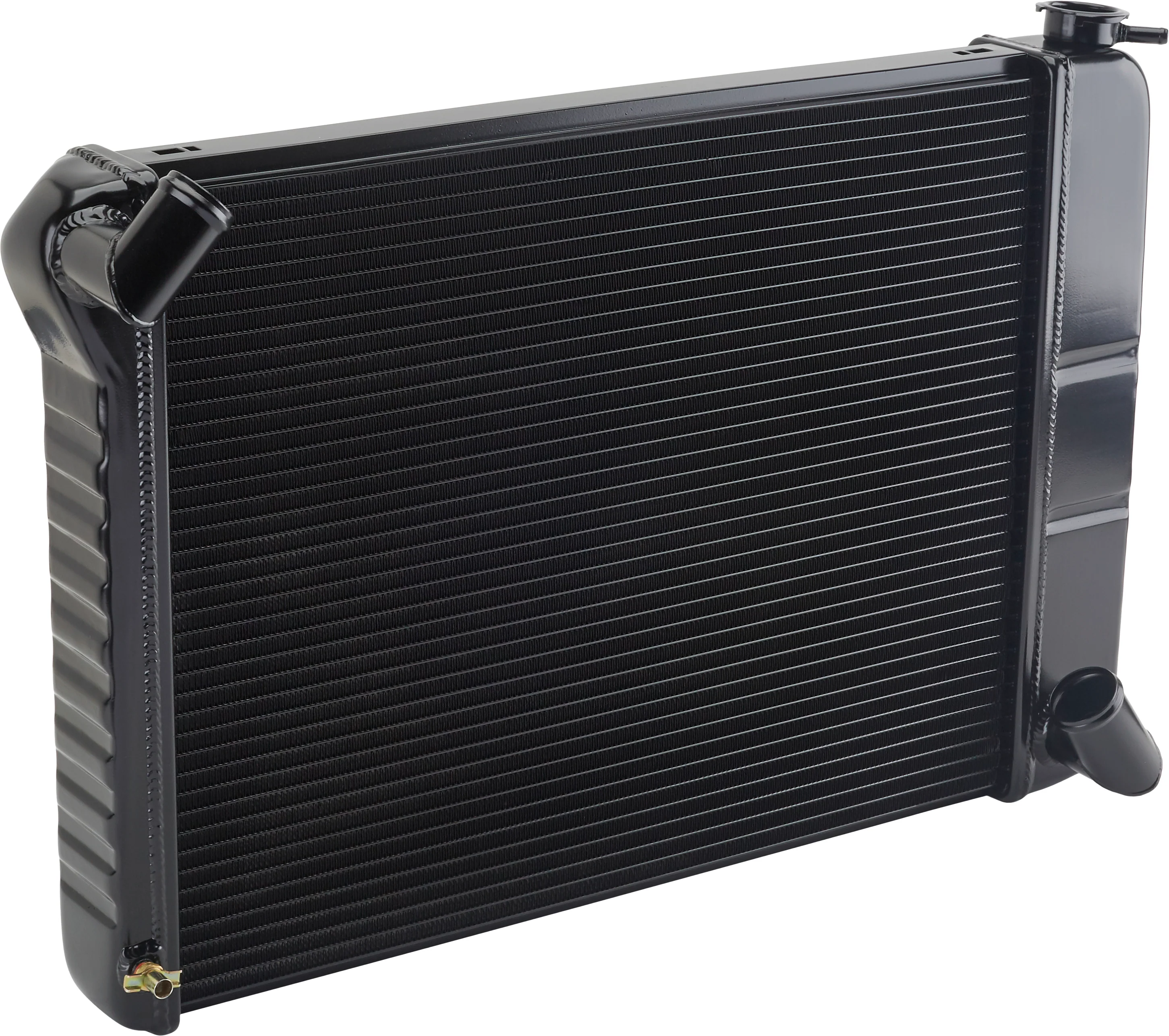

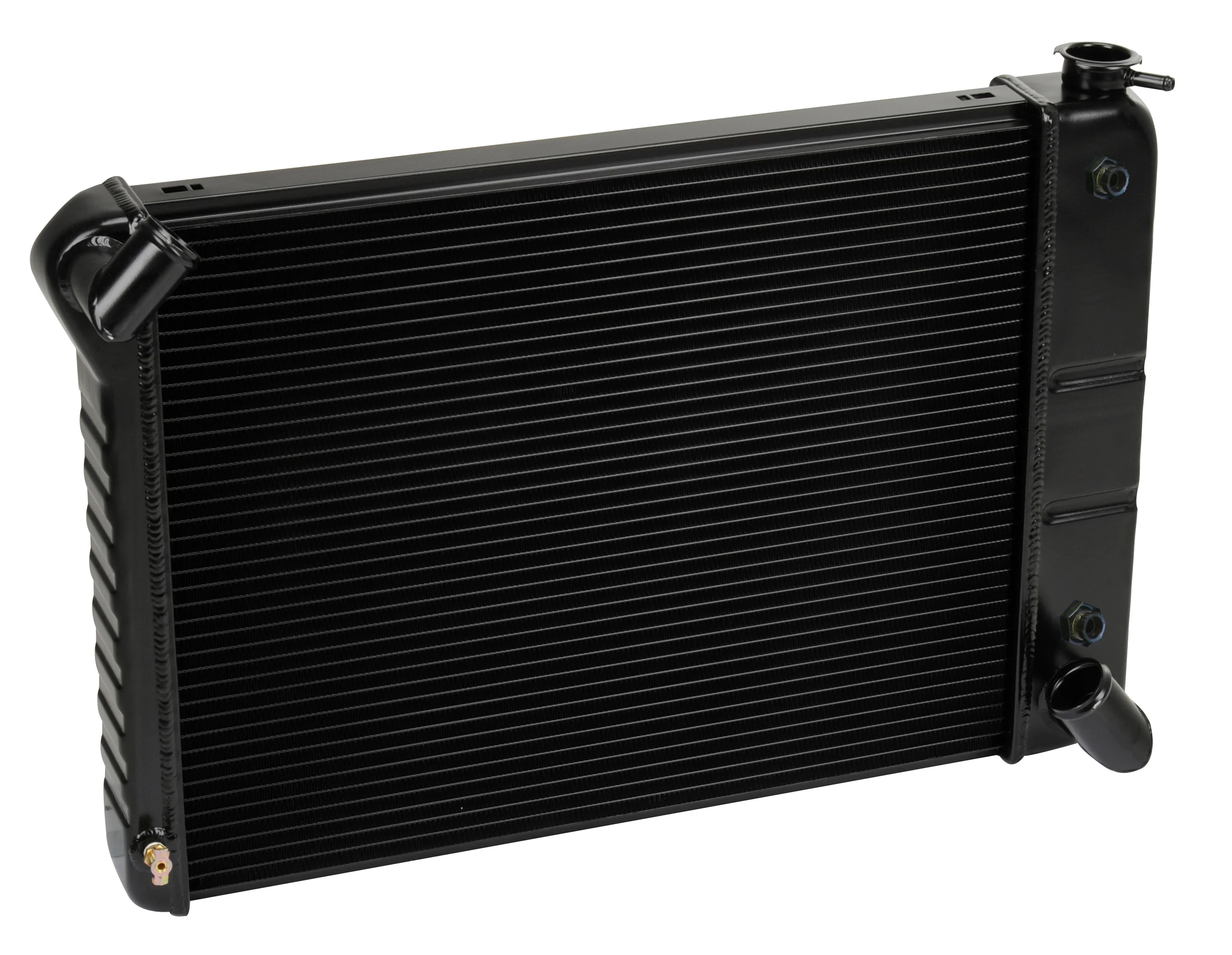

DeWitts Pro-series aluminum radiators feature two rows of 1.0" wide cooling tubes which provides a 25% increase in cooling performance. Our Direct FitĀ® aluminum radiators feature factory type press formed end tanks, serpentine fins, and the factory type upper and lower channels. Each radiator core is assembled and brazed in our state of the art aluminum brazing furnace. DeWitts radiators are also epoxy free and come with a limited lifetime warranty. Direct FitĀ® is our official trademark and it means your radiator will fit, without modifications.
Kit includes two relay harnesses and temperature control switch mounted into the end tank. If ordered as a radiator and fan combination, we will widen the core by 1ā to accommodate a Spal dual 11ā High Performance fan package.
Ā
(Note) This model also fits 1968 small block engines that were equipped with an automatic trans or AC.
Ā
Ā
Specifications:
|
DeWitts Direct FitĀ® |
Original Equipment |
|
|
Radiator Style: |
Single Pass |
Single Pass |
|
Radiator Flow Direction: |
Crossflow |
Crossflow |
|
Material Type: |
Aluminum |
Copper/Brass |
|
Inlet Location: |
Upper driver side |
Upper driver side |
|
Outlet Location: |
Lower passenger side |
Lower passenger side |
|
Row Quantity: |
2 |
4 core (3/8"" tubes) |
|
Tube Size: |
1" |
3/8" |
|
Core Width: |
22.5ā (23.5ā w/fans) |
22.5ā |
|
Core Height: |
18.5ā |
18.5ā |
|
Overall Width: |
28" |
27.50 |
|
Core Thickness: |
2.25" |
2.5 |
|
Overall Thickness: |
3.2 |
3.2 |
|
Overall Height: |
18.6 |
18.6 |
|
Cap Included: |
No |
No |
|
Finish: |
Natural or Black |
Black |
|
Filler Neck Height: |
1" |
1" |
|
Inlet Size: |
1.5ā |
1.5ā |
|
Outlet Size: |
1.75ā |
1.75ā |
|
Cooler Thread Size: |
5/16ā Inv. Flare |
5/16 Inv Flare |
|
BTU/m: |
5278 |
4242 |
Brushed Fan Kit
Ā

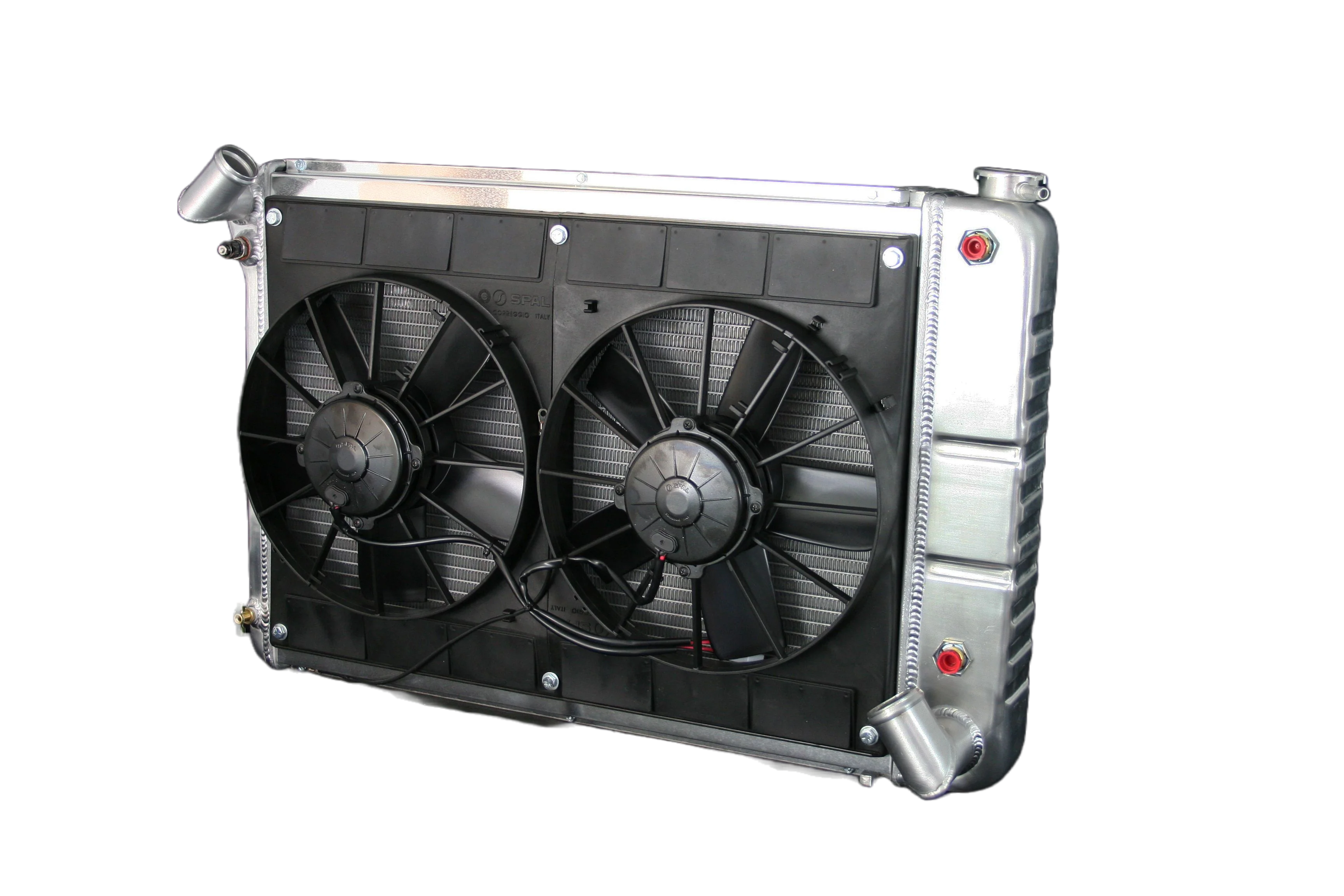

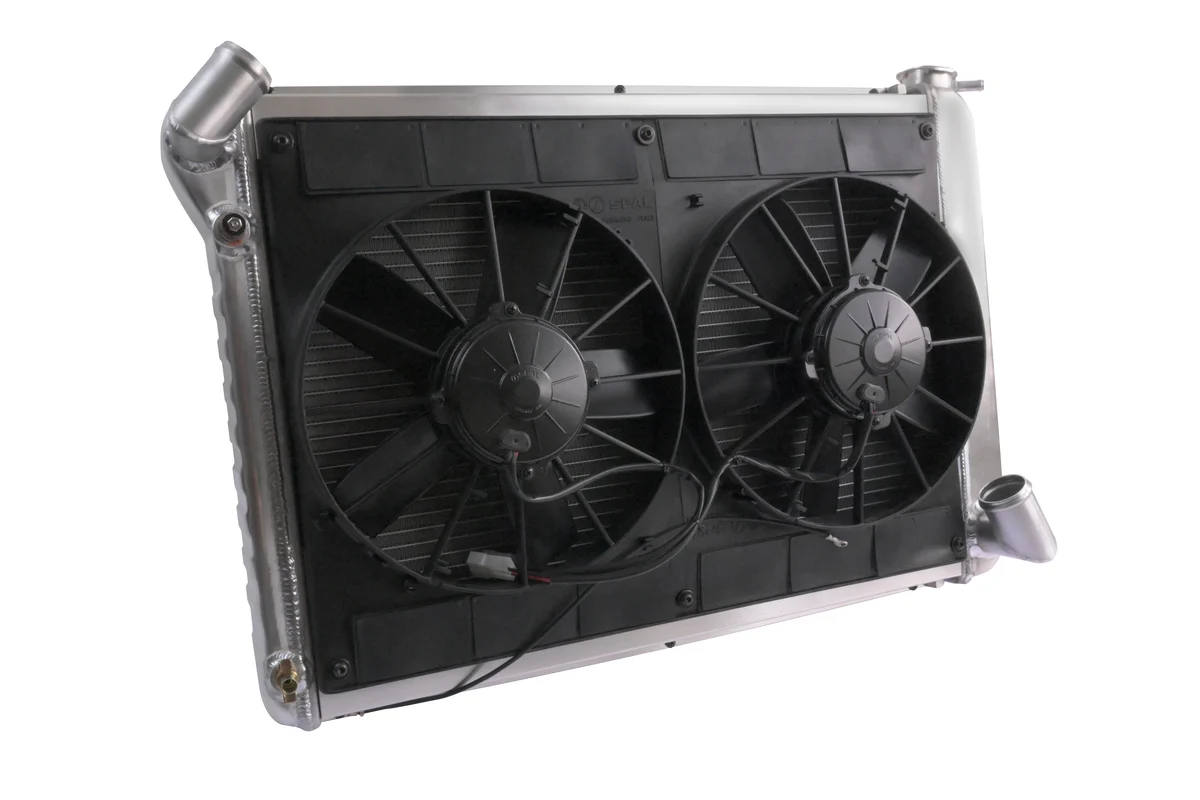

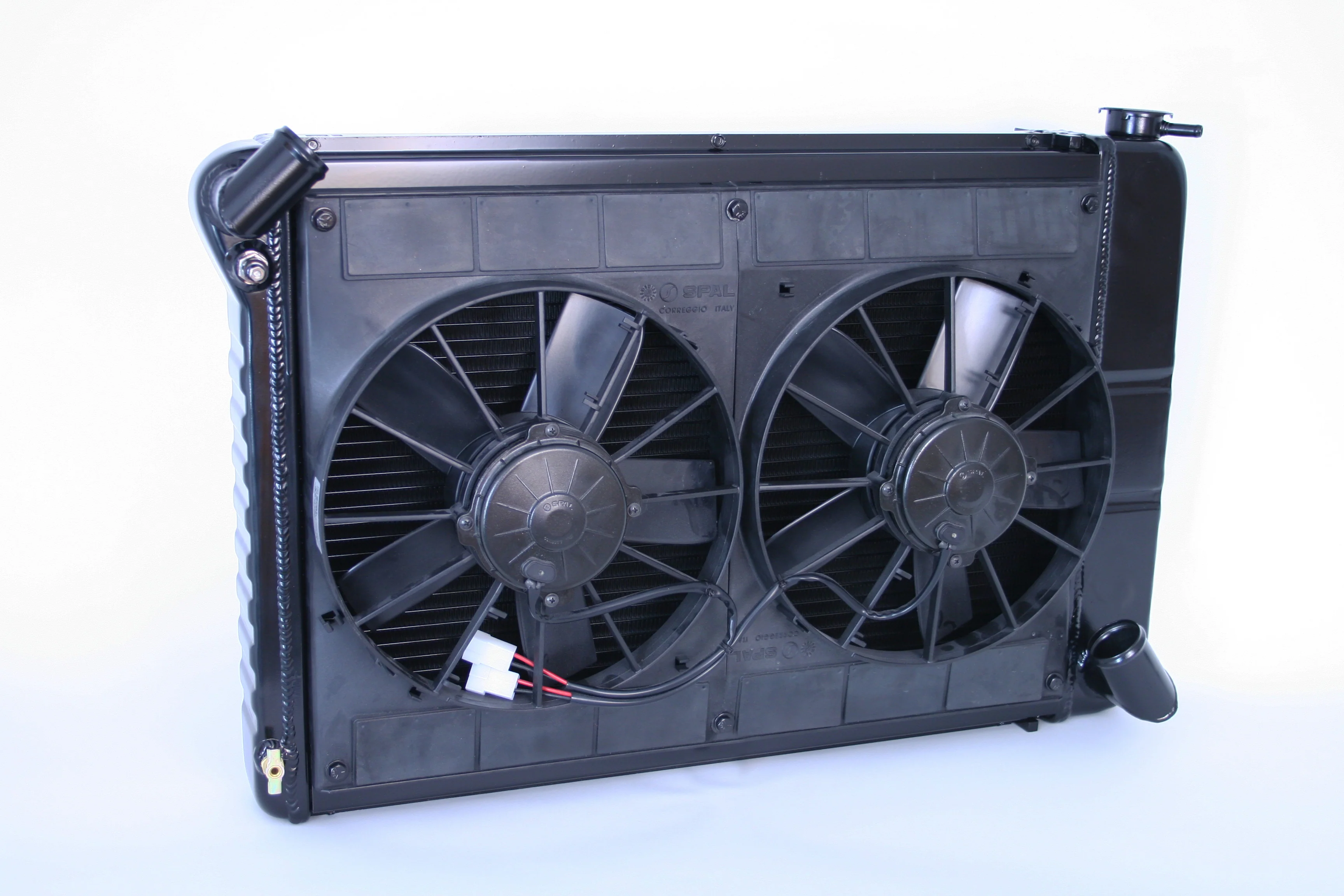

This fan package includes our Direct FitĀ® aluminum radiator, full face aluminum shroud with six (6) rubber check valves (flaps), and a high performanceĀ Dual 11"Ā SPAL Fan. SPAL is a world leader in the design and manufacture of high-quality electric axial fans for automotive use. The kit comes with a wiring harness and temperature switch for fan operation.
Specifications:
|
DualĀ Ā SPAL Fans |
|
|
Blade Diameter: |
11" |
|
Blade Orientation: |
Paddle |
|
CFM: |
2720 |
|
Overall Width: |
23.5" |
|
Overall Height: |
16.3" |
|
Fan Thickness: |
4.25" |
|
Amps: |
30 each |
|
Fan SKU #: |
32-SP30102052 |
|
Rotation: |
CCW |
|
Weight: |
13 lbs |
|
# of Blades: |
10 |
|
Color: |
Black |
|
Material: |
Plastic |
|
Push/Pull |
Pull |
|
Fuse Required: |
40 amp |
|
Voltage: |
12V |
Ā
Brushless Fan Kit
Ā

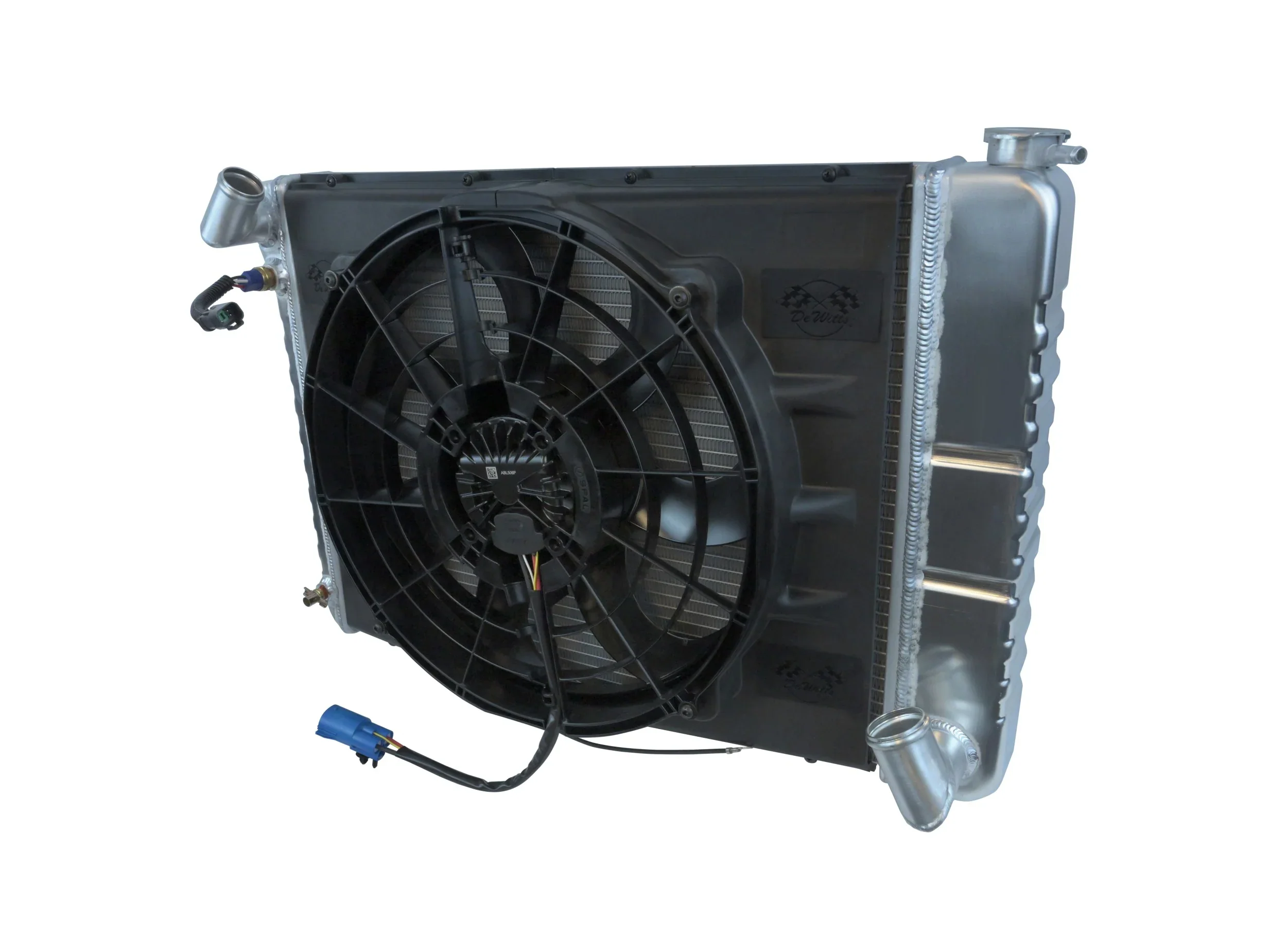

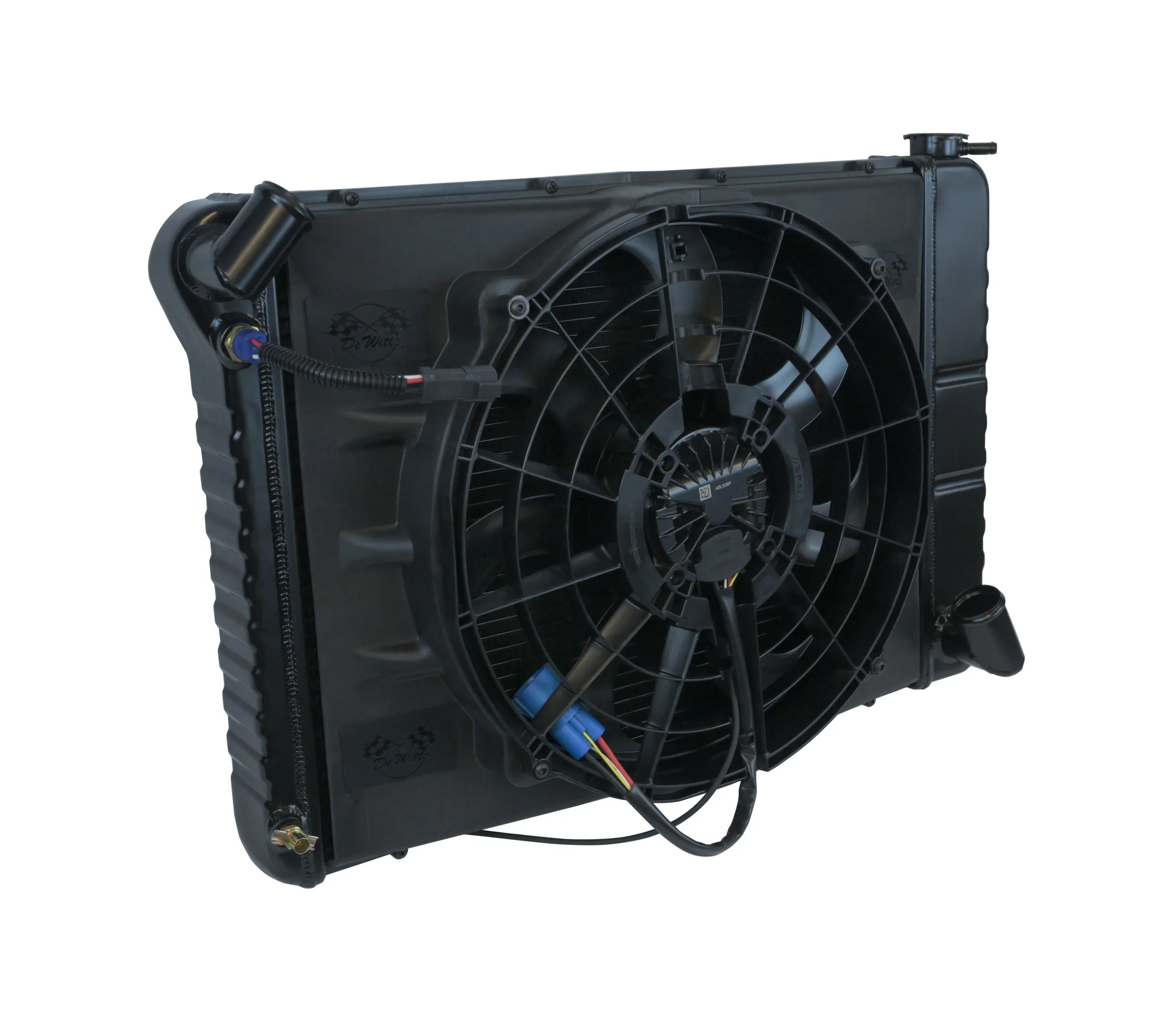

This fan package includes our Direct FitĀ® aluminum radiator, full face aluminum shroud with six (6) rubber check valves (flaps), and high performance Dual 11" SPAL Fan. SPAL is a world leader in the design and manufacture of high-quality electric axial fans for automotive use. The kit comes with a wiring harness and temperature switch for fan operation.
Specifications:
|
DualĀ Brushless SPAL Fans |
|
|
Blade Diameter: |
11" |
|
Blade Orientation: |
Paddle |
|
CFM: |
2884 |
|
Overall Width: |
23.5" |
|
Overall Height: |
16.3" |
|
Fan Thickness: |
4.25" |
|
Amps: |
30 each |
|
Fan SKU #: |
32-SP30102052 |
|
Rotation: |
CCW |
|
Weight: |
13 lbs |
|
# of Blades: |
9 |
|
Color: |
Black |
|
Material: |
Plastic |
|
Push/Pull |
Pull |
|
Starting/Running Amps |
1/33 |
|
Voltage: |
12V |
