1963-1967 C2 Corvette Direct Fit® Pro Series Radiator

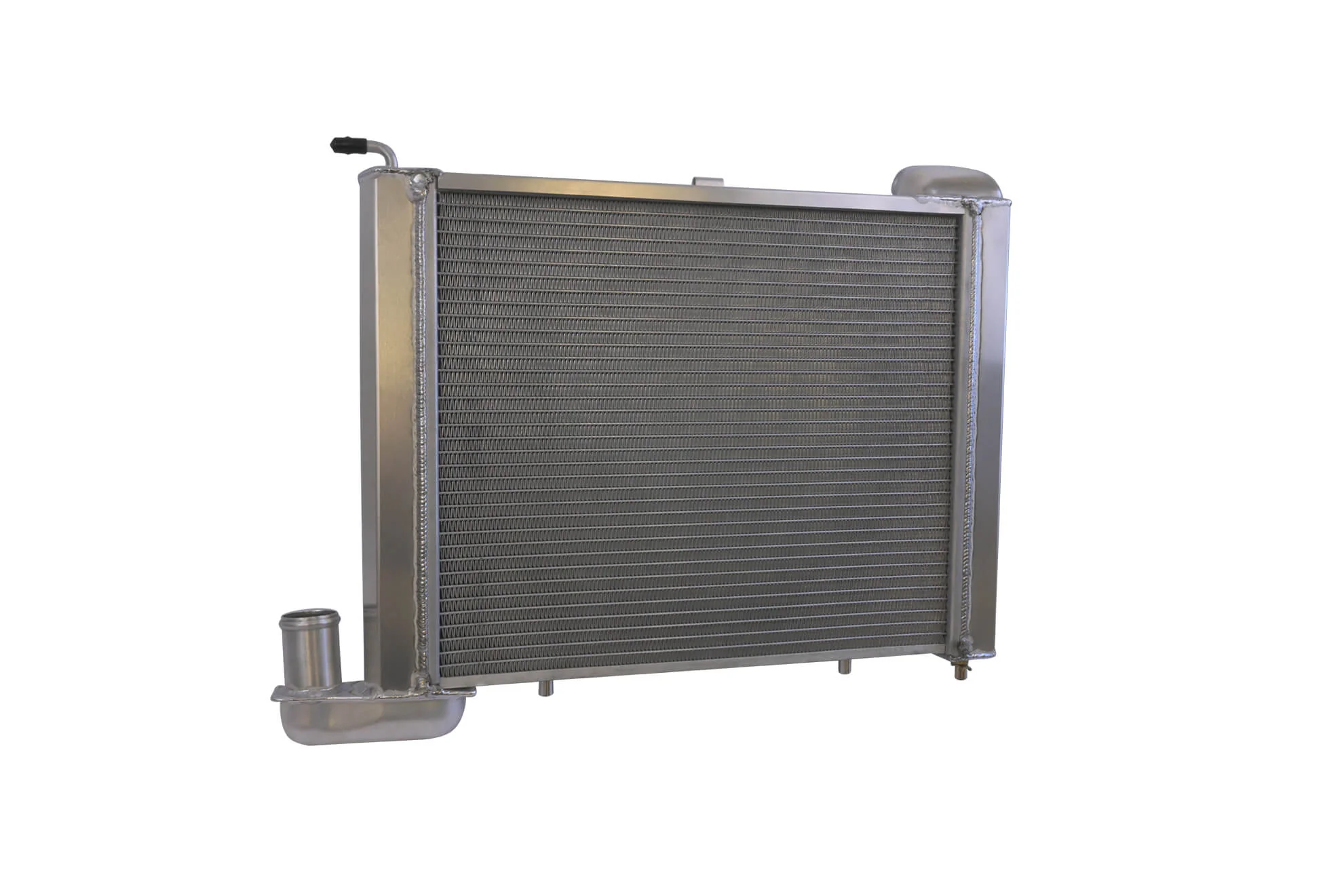

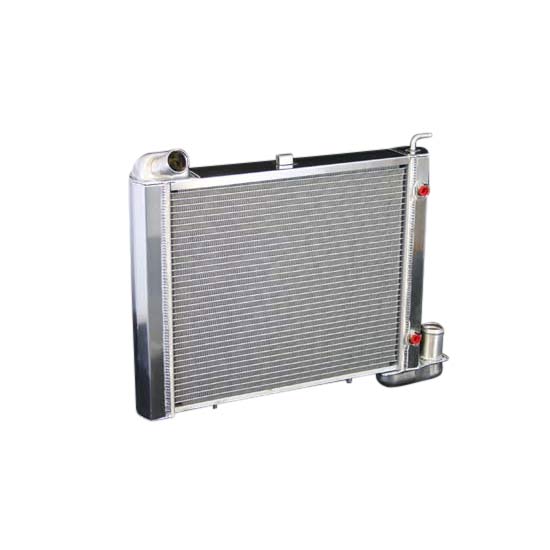

Radiator

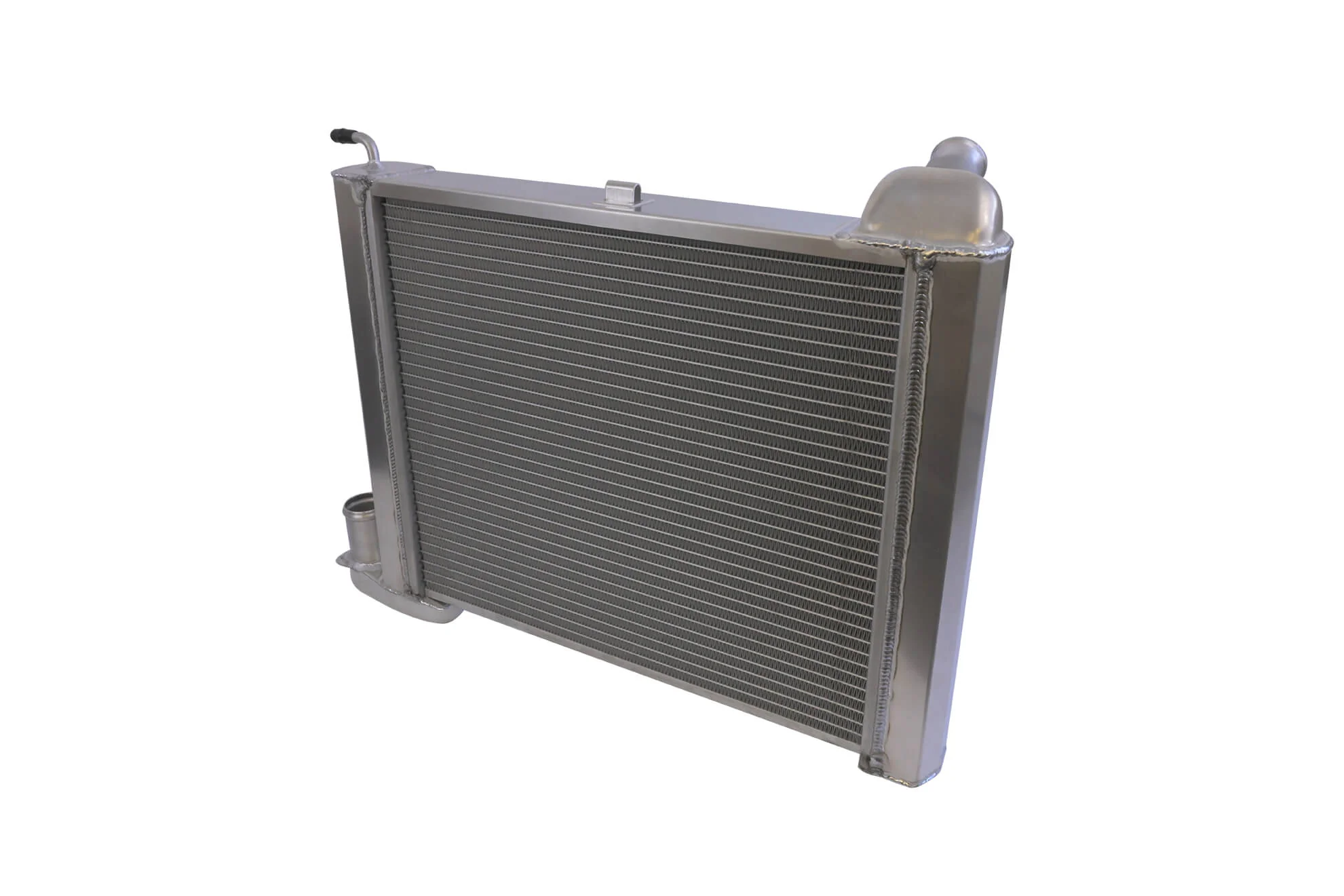

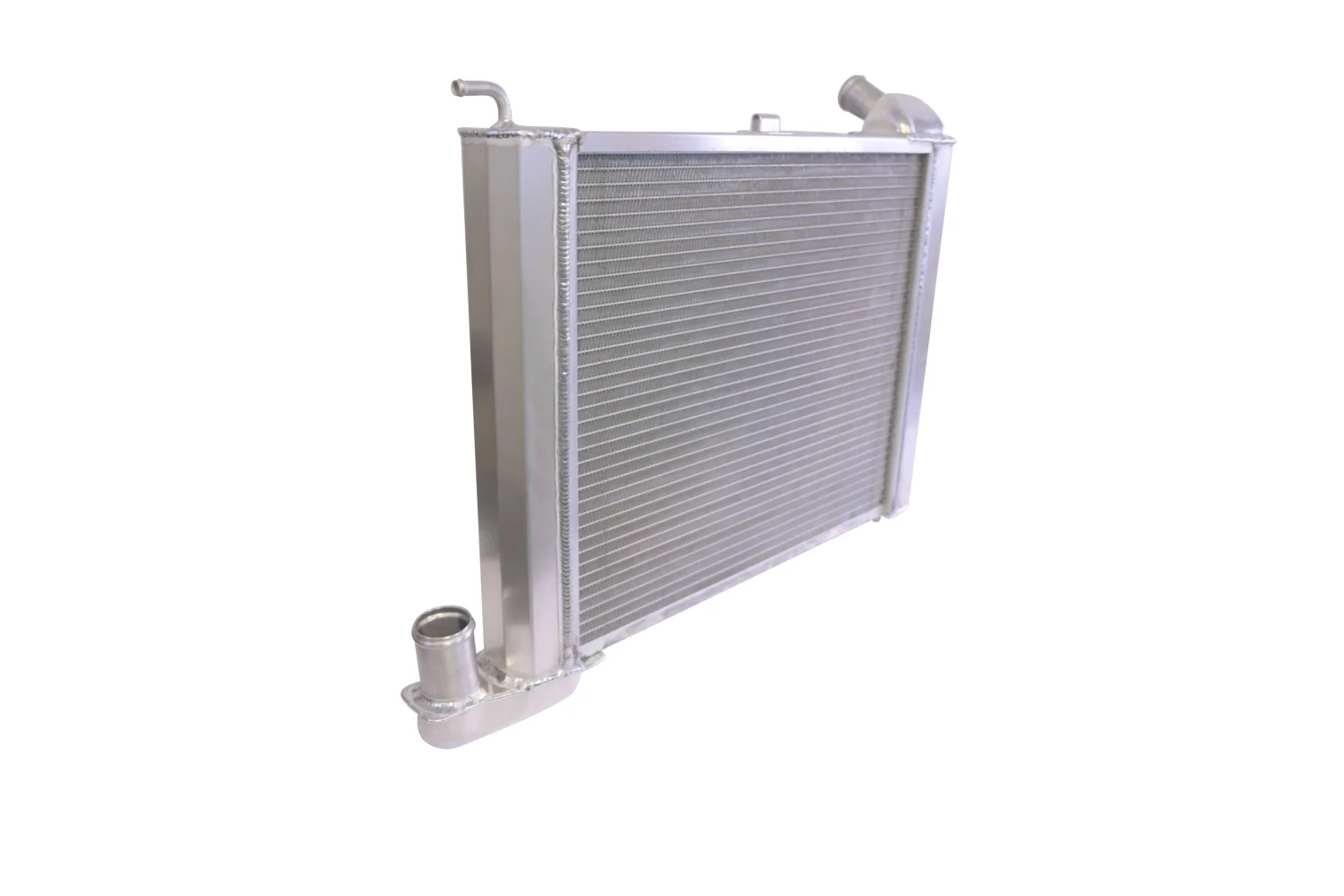

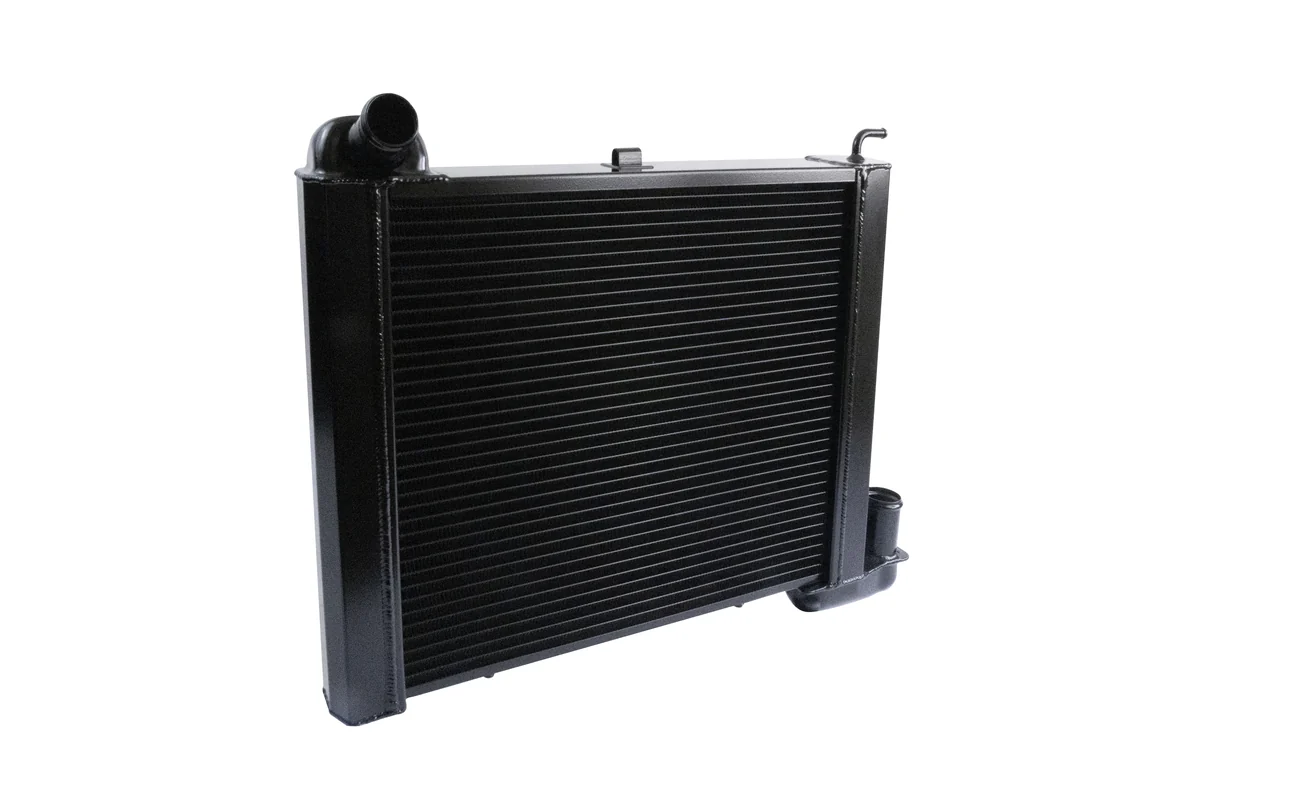

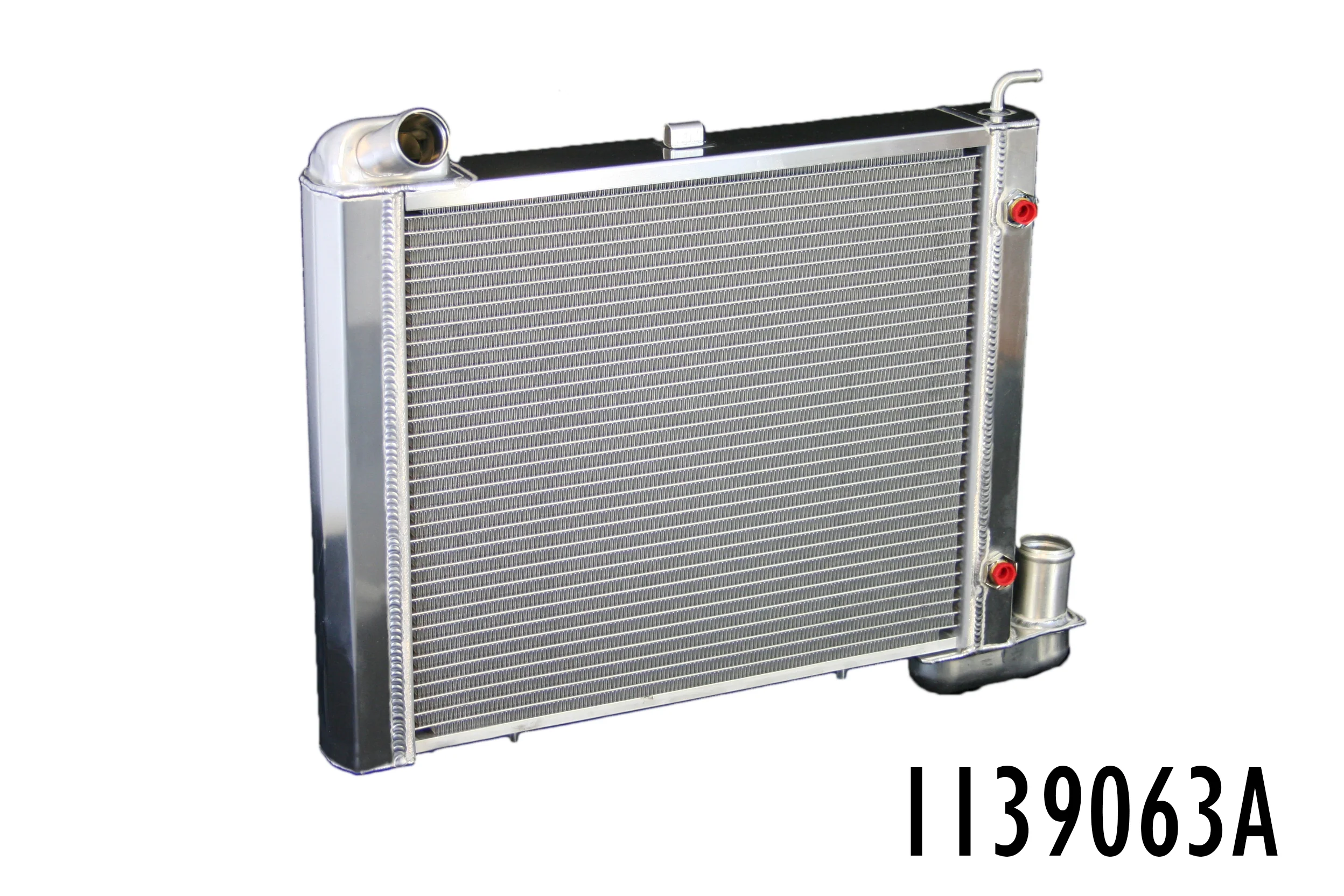

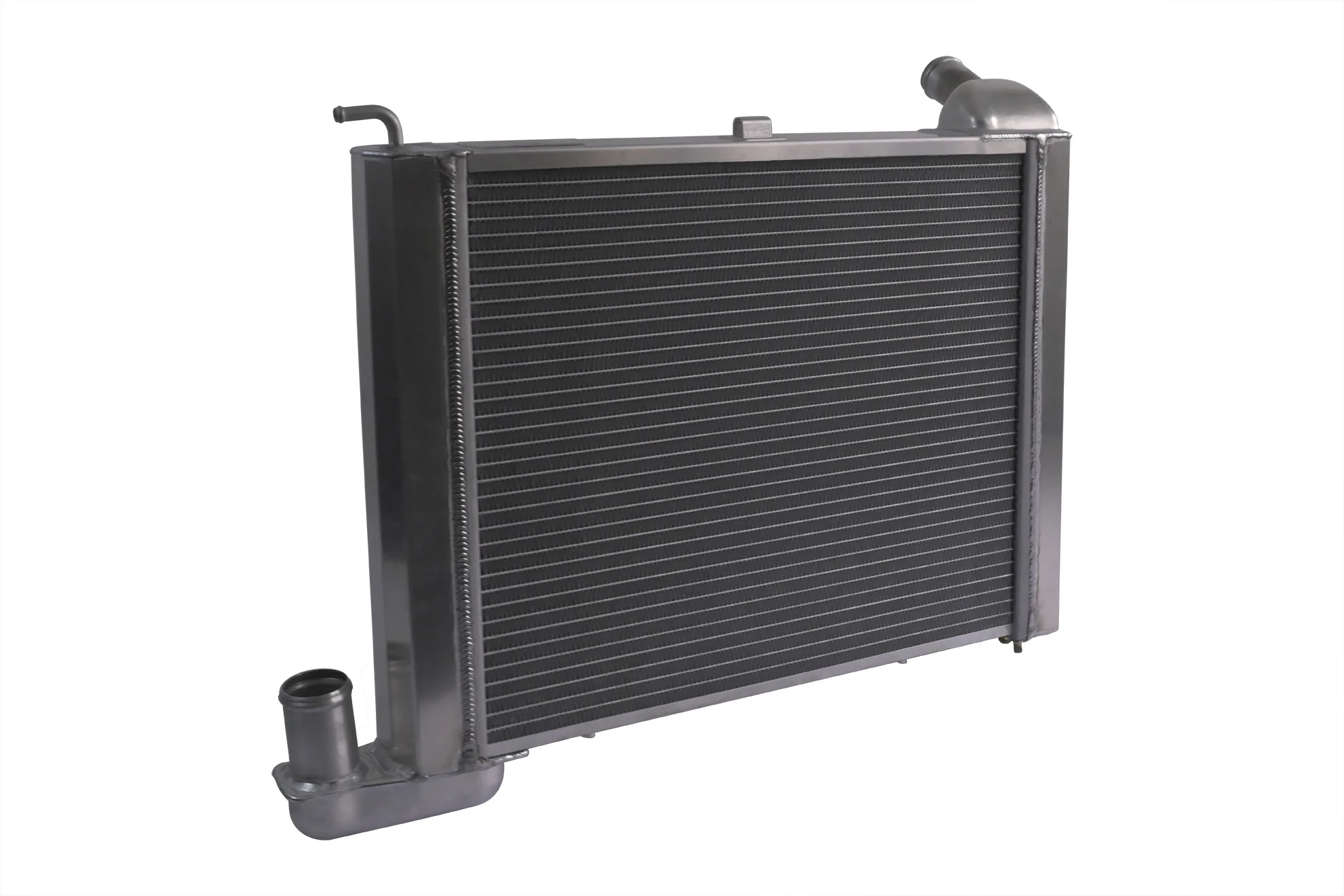

These all-aluminum radiators are the ONLY true Direct Fit® radiators on the market. Direct Fit® is our official trademark and it means your radiator will fit, without modifications. Each DeWitts radiator is expertly TIG welded, free of epoxy, and come with a limited lifetime warranty.

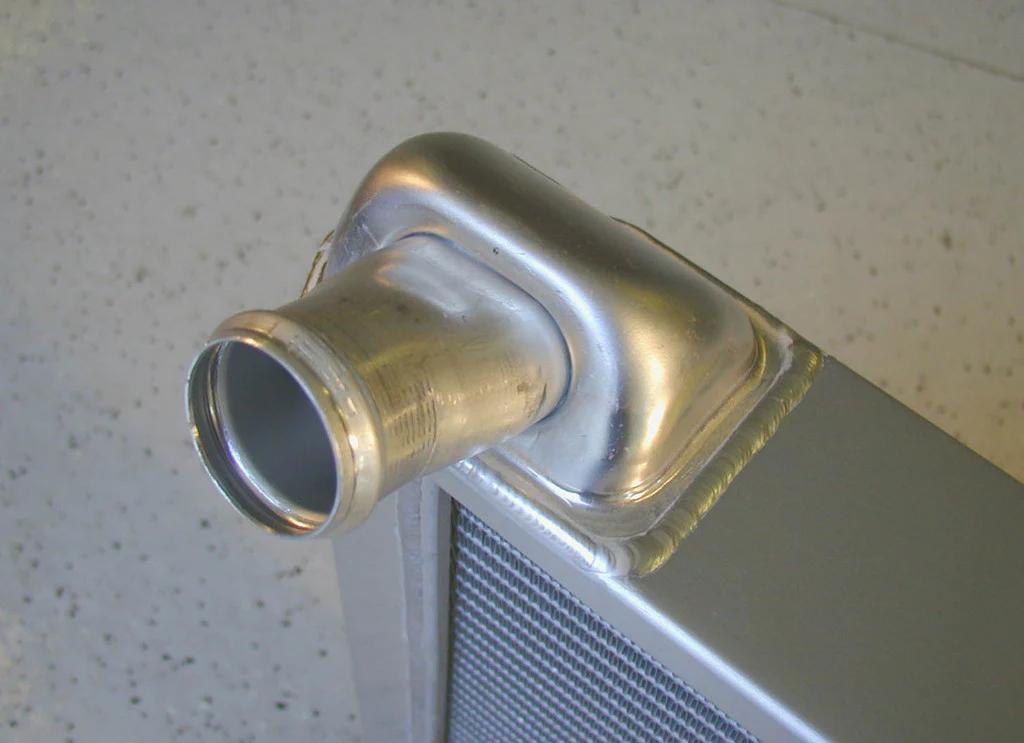

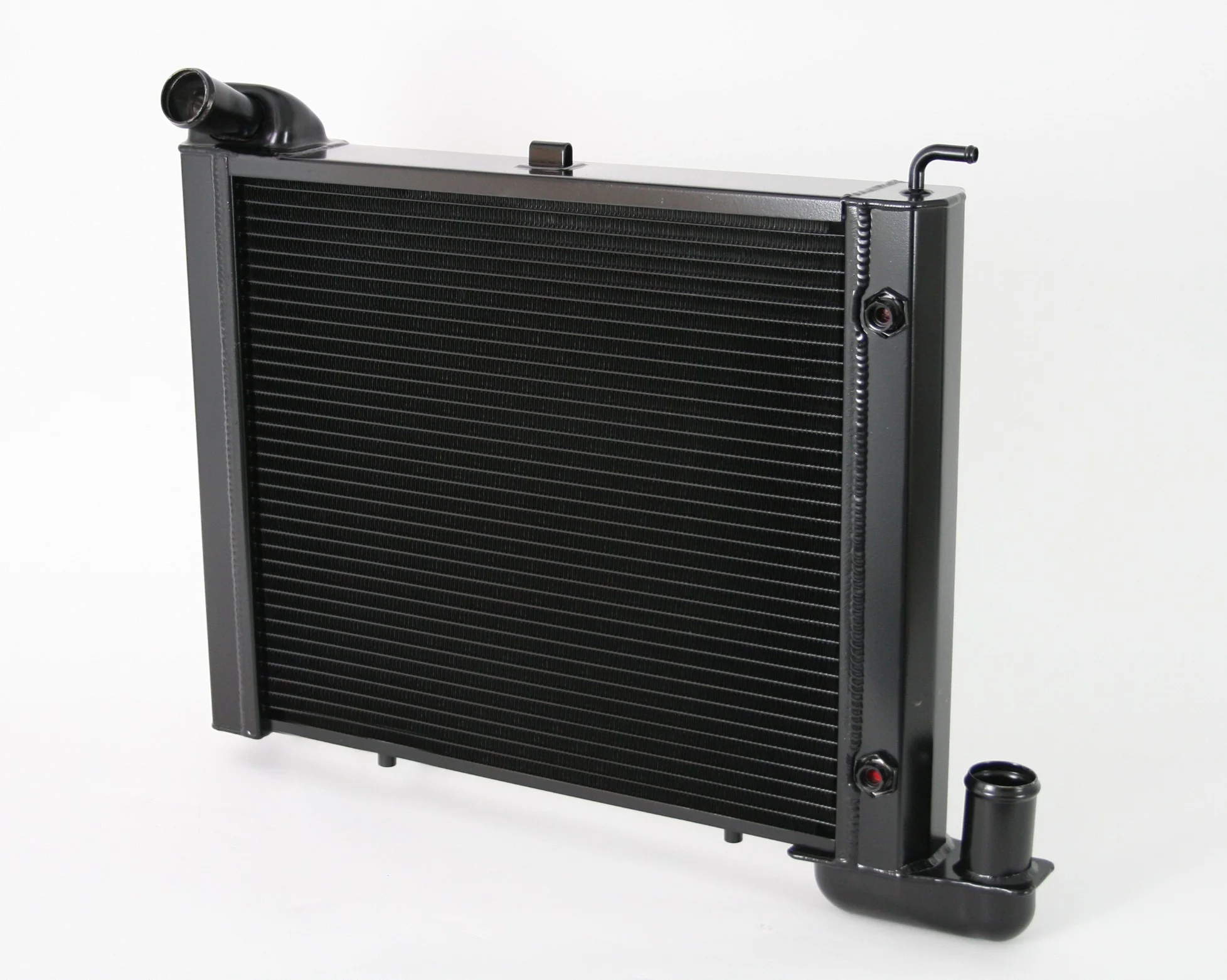

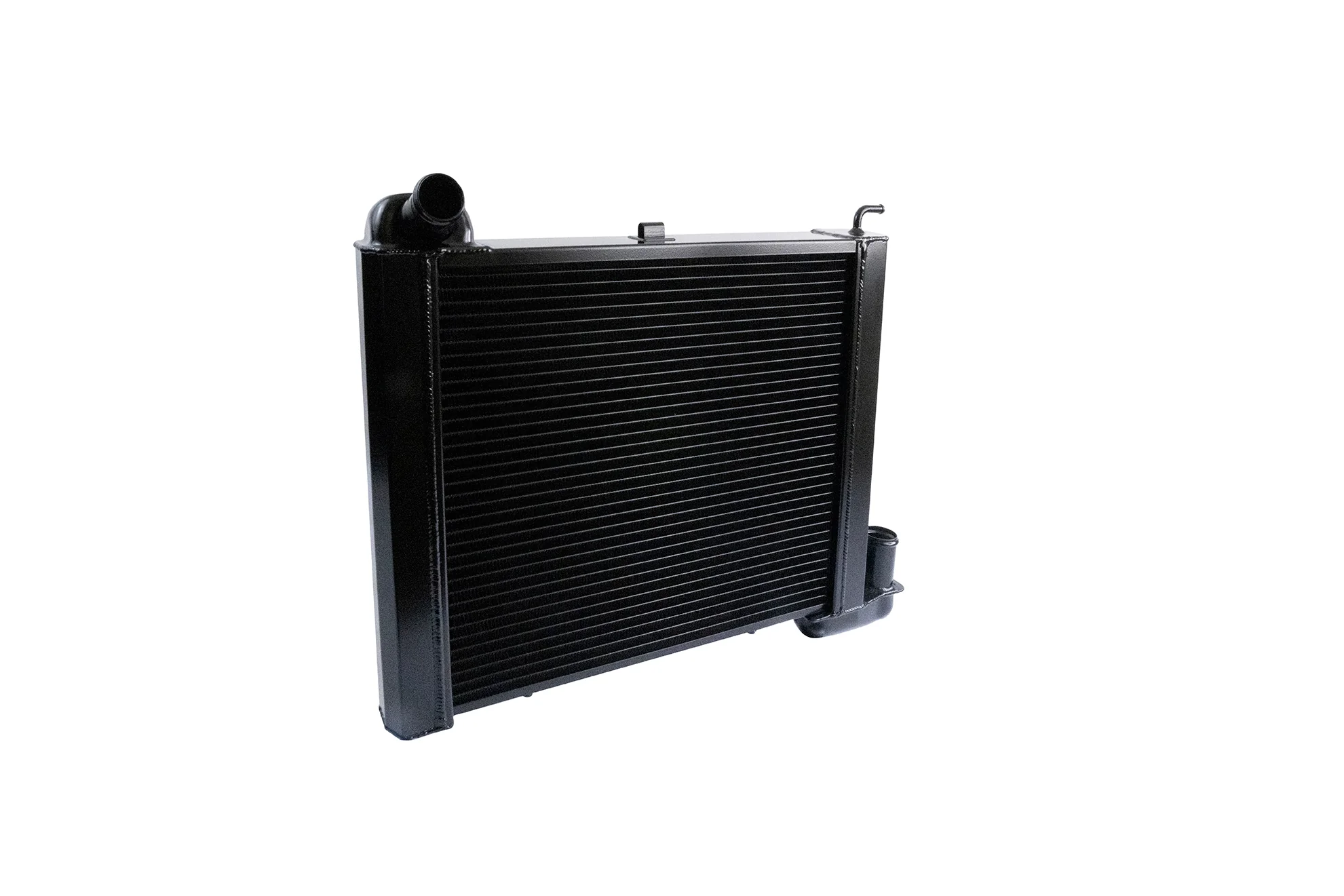

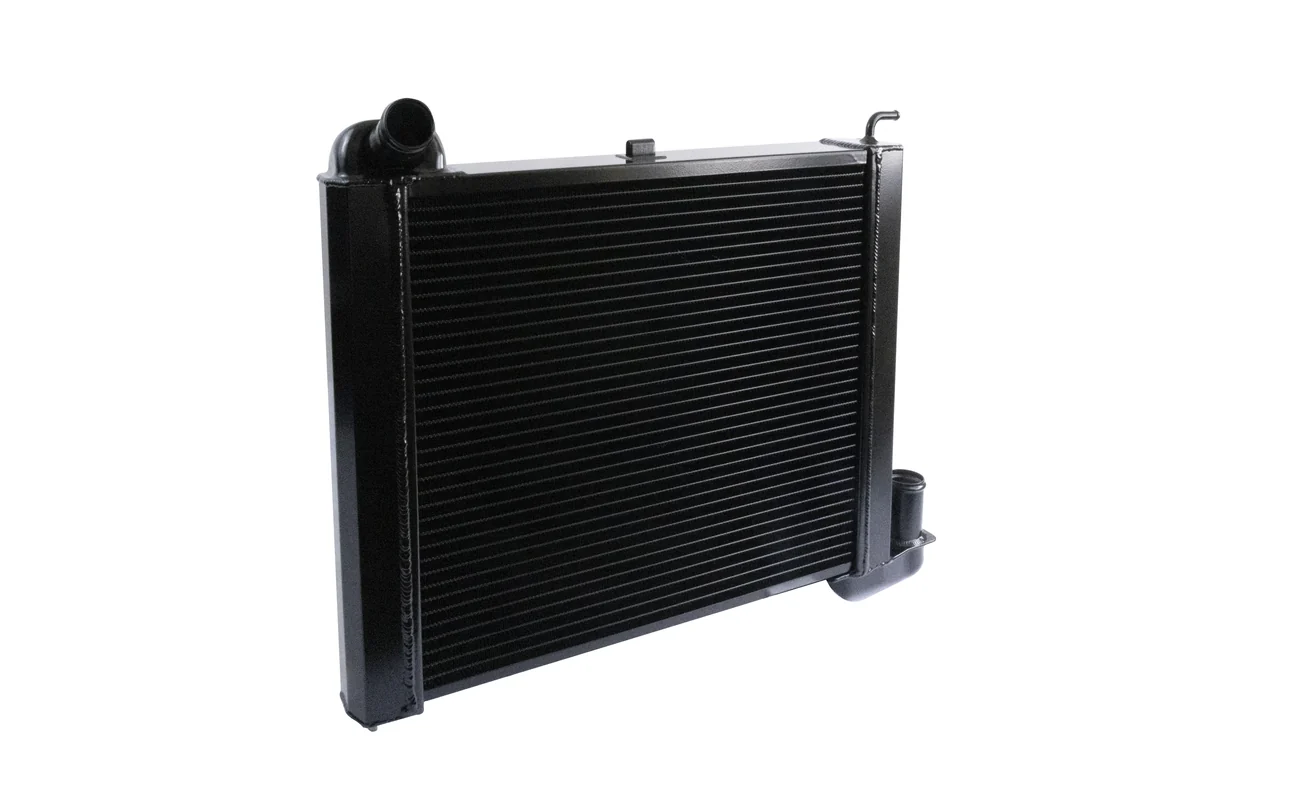

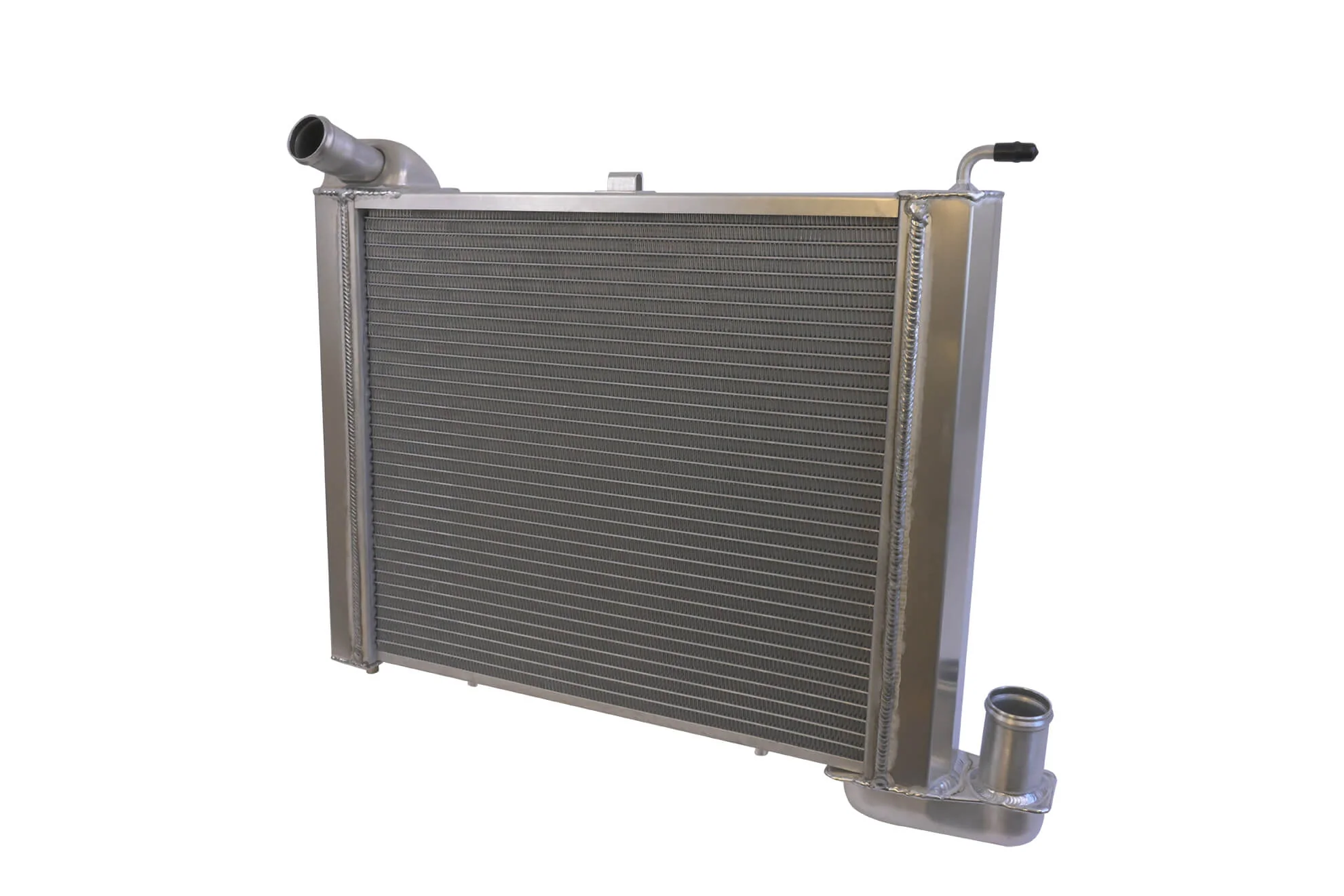

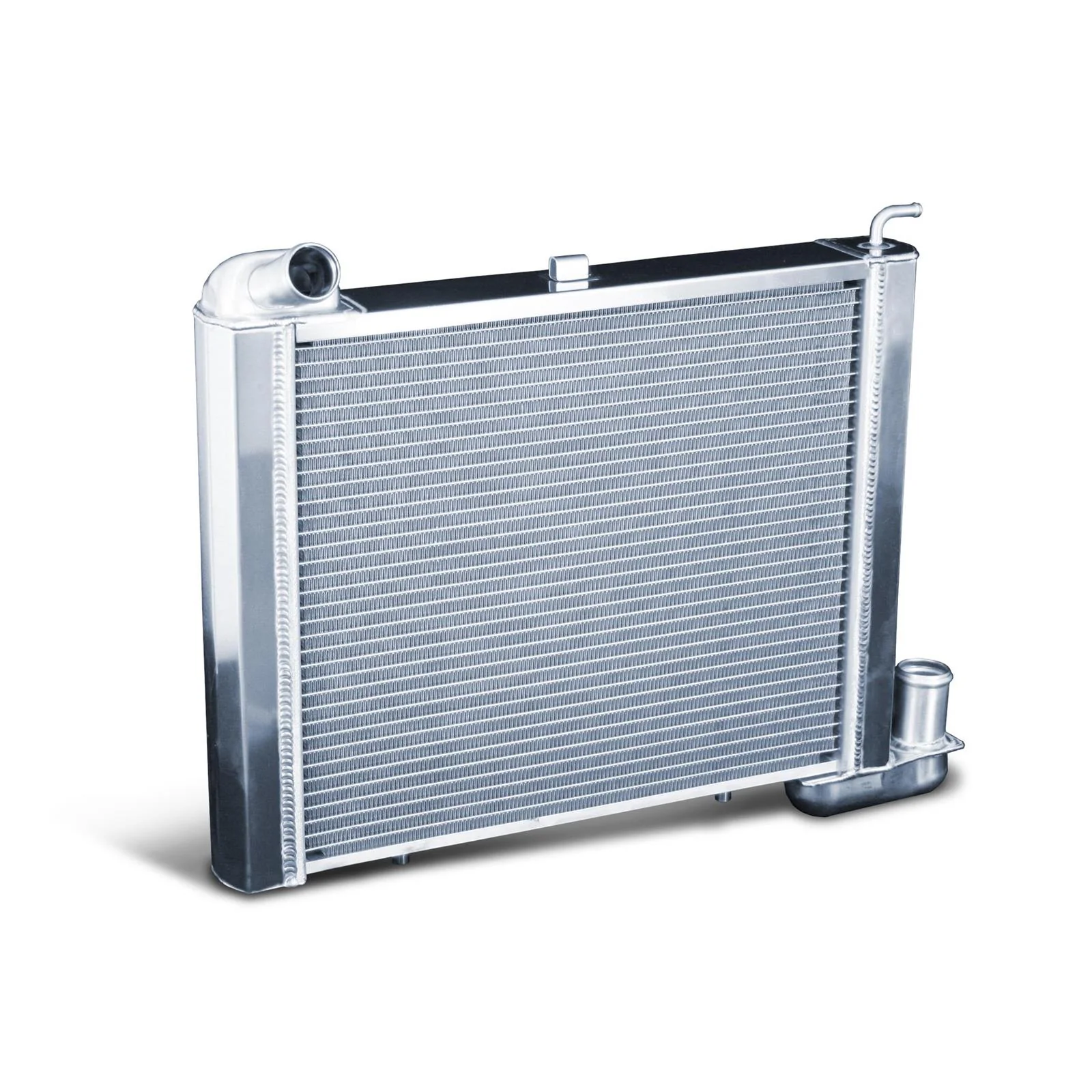

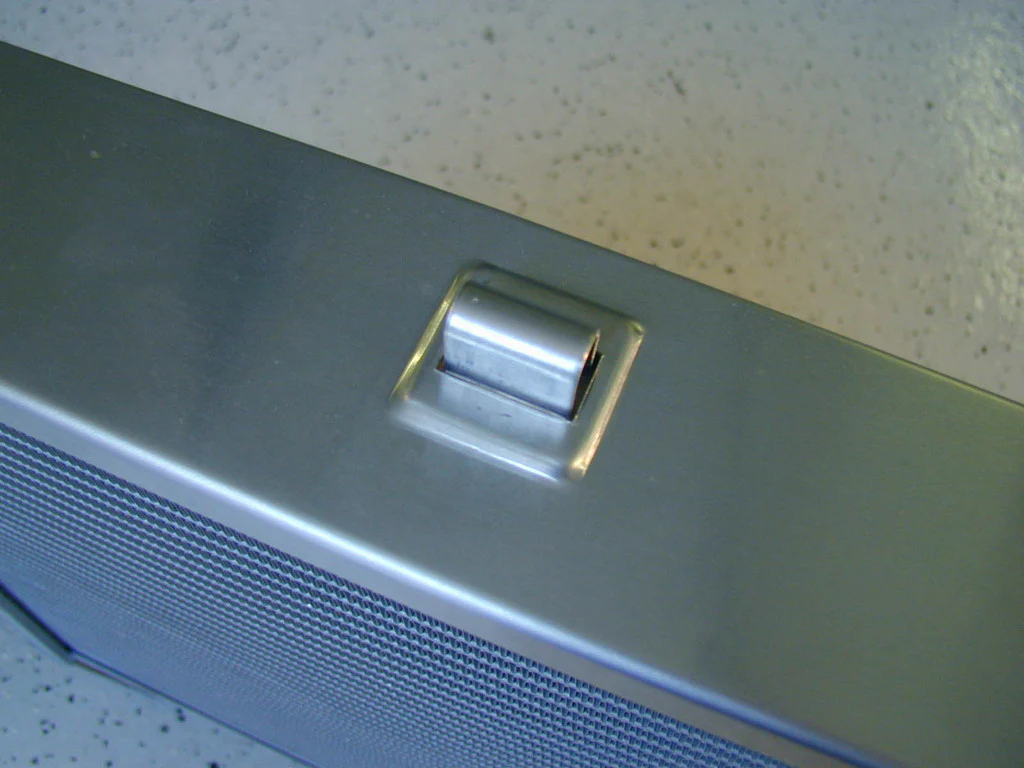

This radiator features press formed end tanks and factory located mounting pins. Each Pro Series aluminum radiator features two rows of 1" wide cooling tubes, with louvered fin, and is brazed in our state-of-the-art aluminum brazing furnace. The Pro Series offers 33% more cooling efficiency over original equipment while maintaining the same fit.
Specifications
|
DeWitts Direct Fit® |
Original Equipment |
|
|
Radiator Style: |
Single Pass |
Single Pass |
|
Radiator Flow Direction: |
Crossflow |
Crossflow |
|
Material Type: |
Aluminum |
Aluminum |
|
Inlet Location: |
Upper Driver side |
Upper Driver side |
|
Outlet Location: |
Lower passenger side |
Lower passenger side |
|
Row Quantity: |
2 |
Single row plate |
|
Tube Size: |
Pro 1" |
N/A |
|
Core Width: |
18.00" |
22.5” |
|
Core Height: |
16.75" |
16.75” |
|
Overall Width: |
22.5” |
22.5” |
|
Core Thickness: |
2.25" |
2.875” |
|
Overall Thickness: |
3” |
2.875” |
|
Overall Height: |
16.75” |
16.75” |
|
Cap Included: |
No |
No |
|
Finish: |
Natural or Black |
Black |
|
Filler Neck Height: |
N/A |
N/A |
|
Inlet Size: |
1.5” |
1.5” |
|
Outlet Size: |
1.75” |
1.75” |
|
Cooler Thread Size: |
5/16" Inverted Flare |
5/16" Inverted Flare |
Brushed Fan

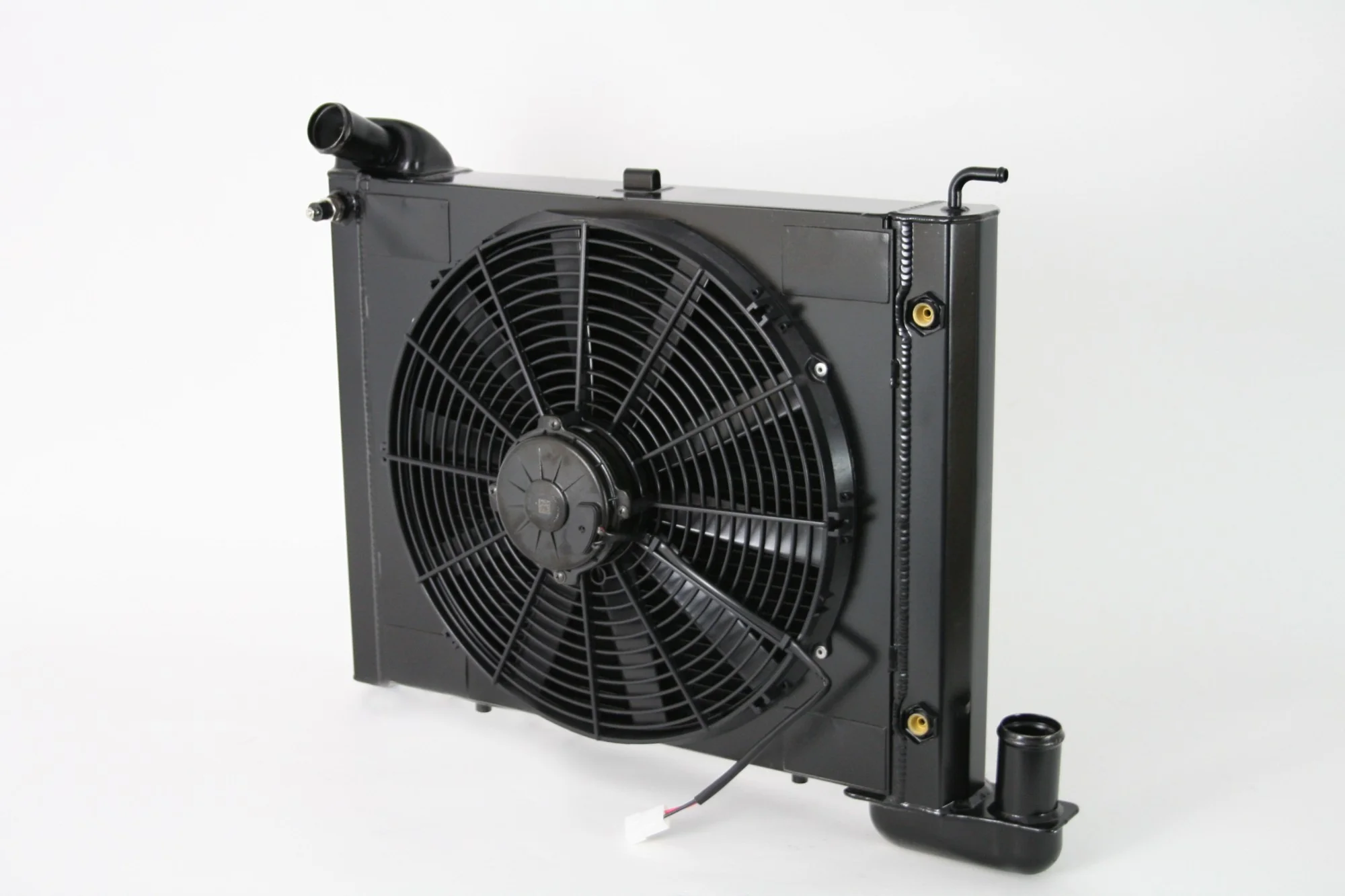

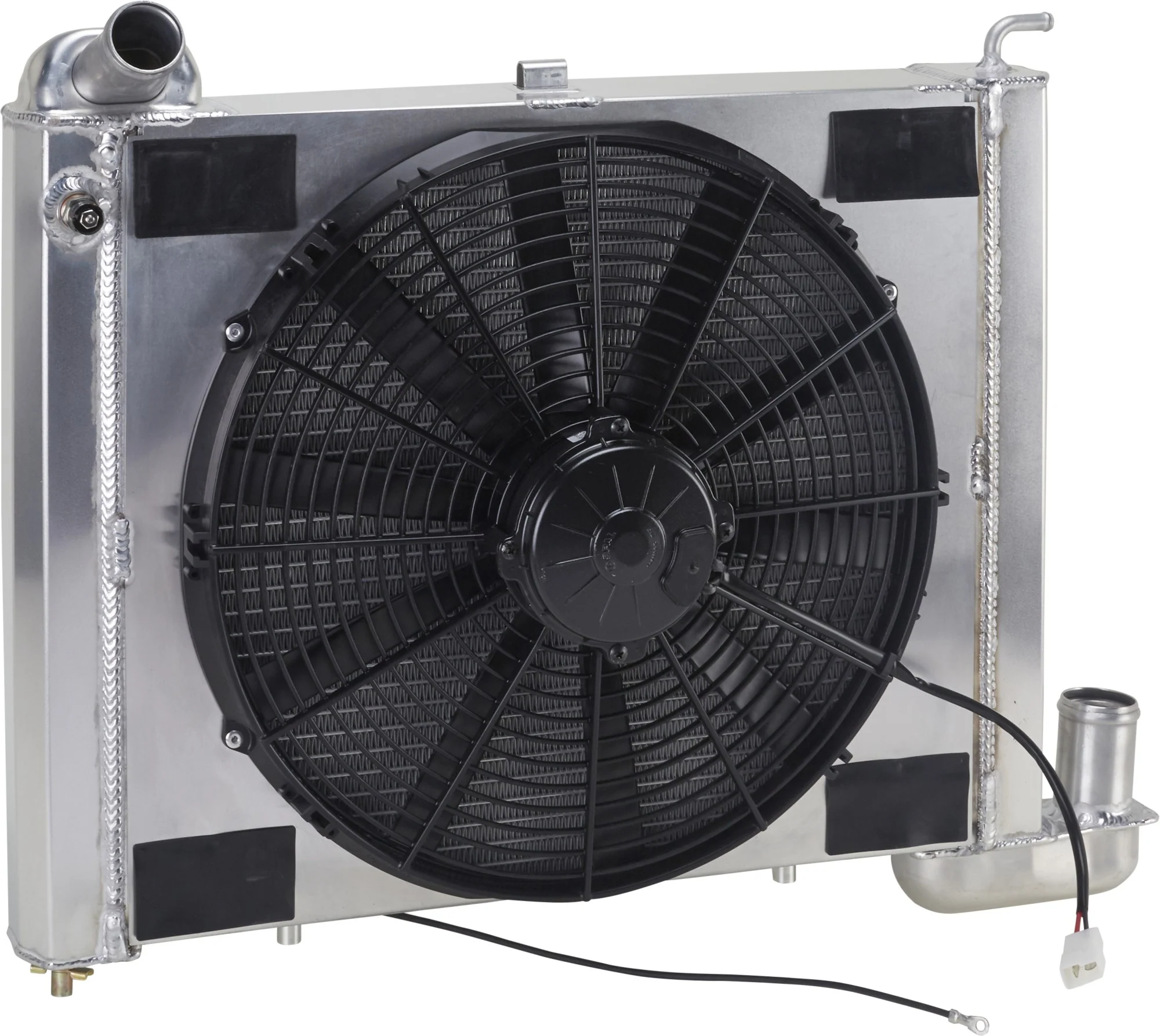

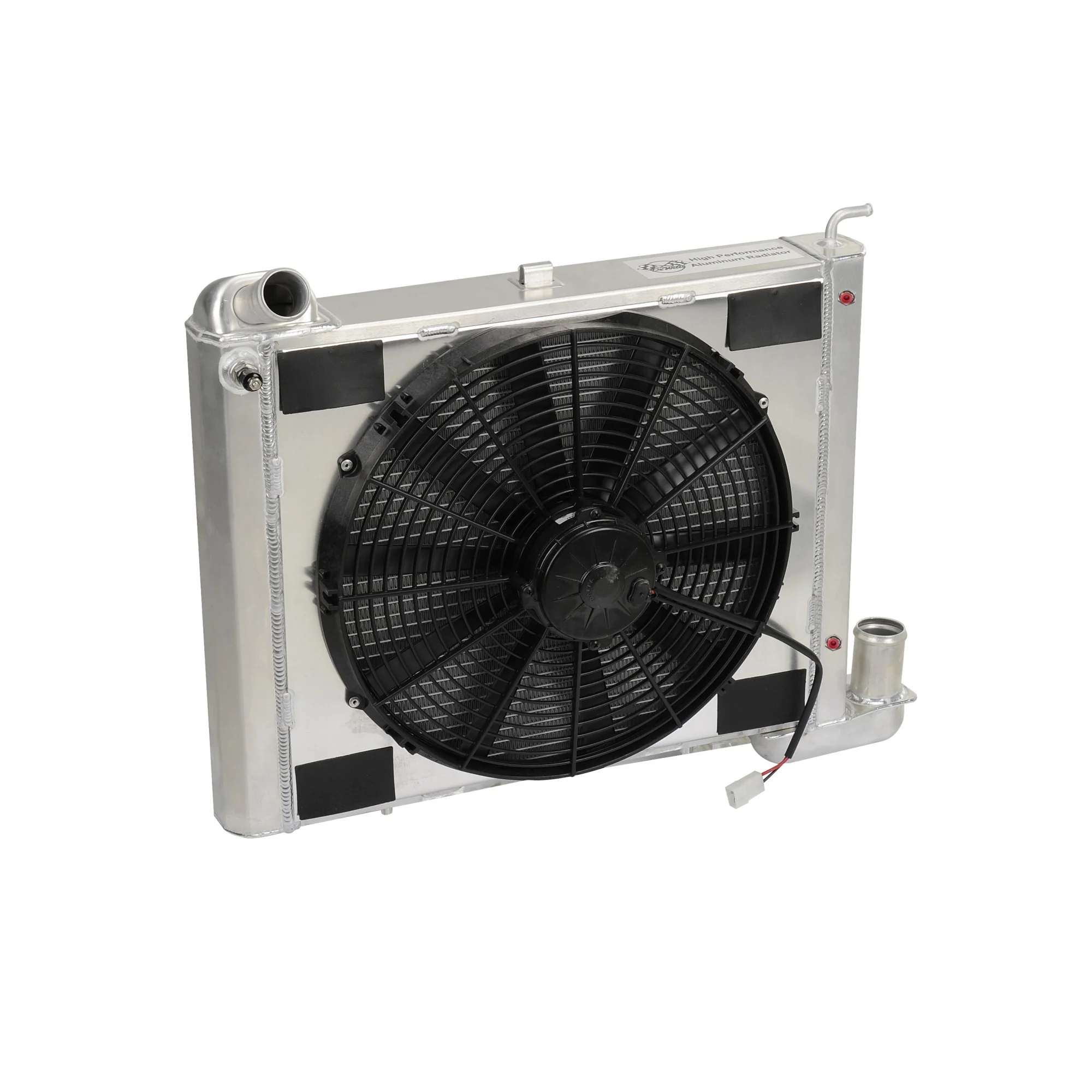

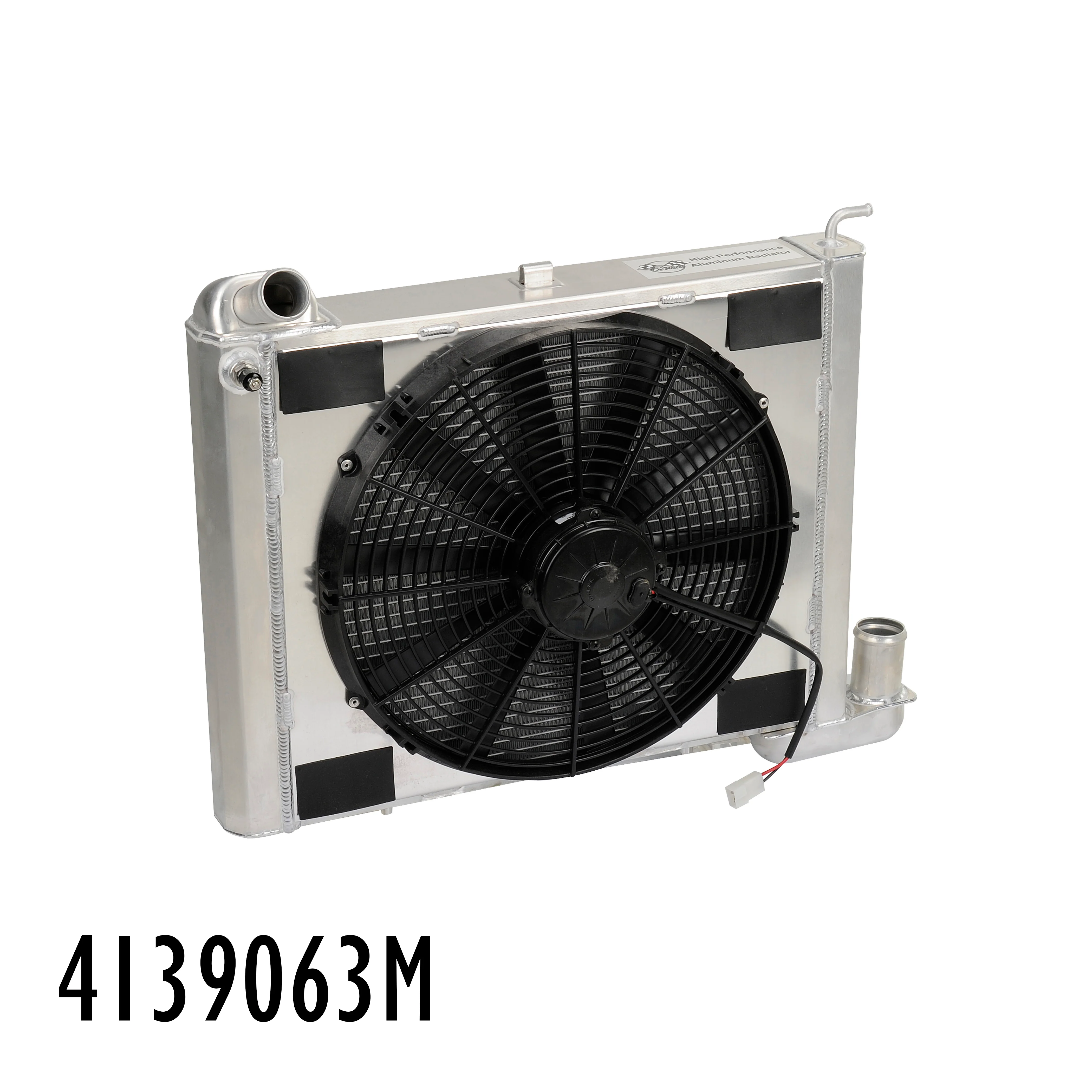

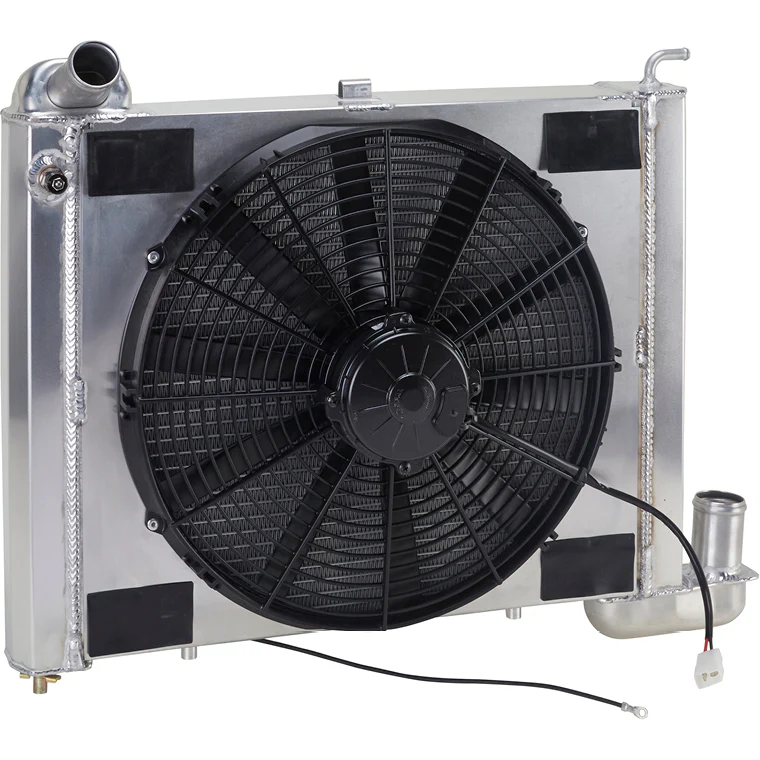

This fan package includes our Direct Fit® aluminum radiator, full face aluminum shroud with six (6) rubber check valves (flaps), and a high performance 16" SPAL Fan. SPAL is a world leader in the design and manufacture of high-quality electric axial fans for automotive use. The kit comes with a wiring harness and temperature switch for fan operation.
Specifications:
|
16" SPAL Fan |
|
|
Blade Diameter: |
15.25" |
|
Blade Orientation: |
Straight |
|
CFM: |
1918 |
|
Overall Width: |
15.75" |
|
Overall Height: |
16.3" |
|
Fan Thickness: |
3.5" |
|
Amps: |
21.6 |
|
Fan SKU #: |
32-SP30102120 |
|
Rotation: |
CCW |
|
Weight: |
6.7 lbs |
|
# of Blades: |
10 |
|
Color: |
Black |
|
Material: |
Plastic |
|
Push/Pull |
Pull |
|
Fuse Required: |
40 amp |
|
Voltage: |
12V |

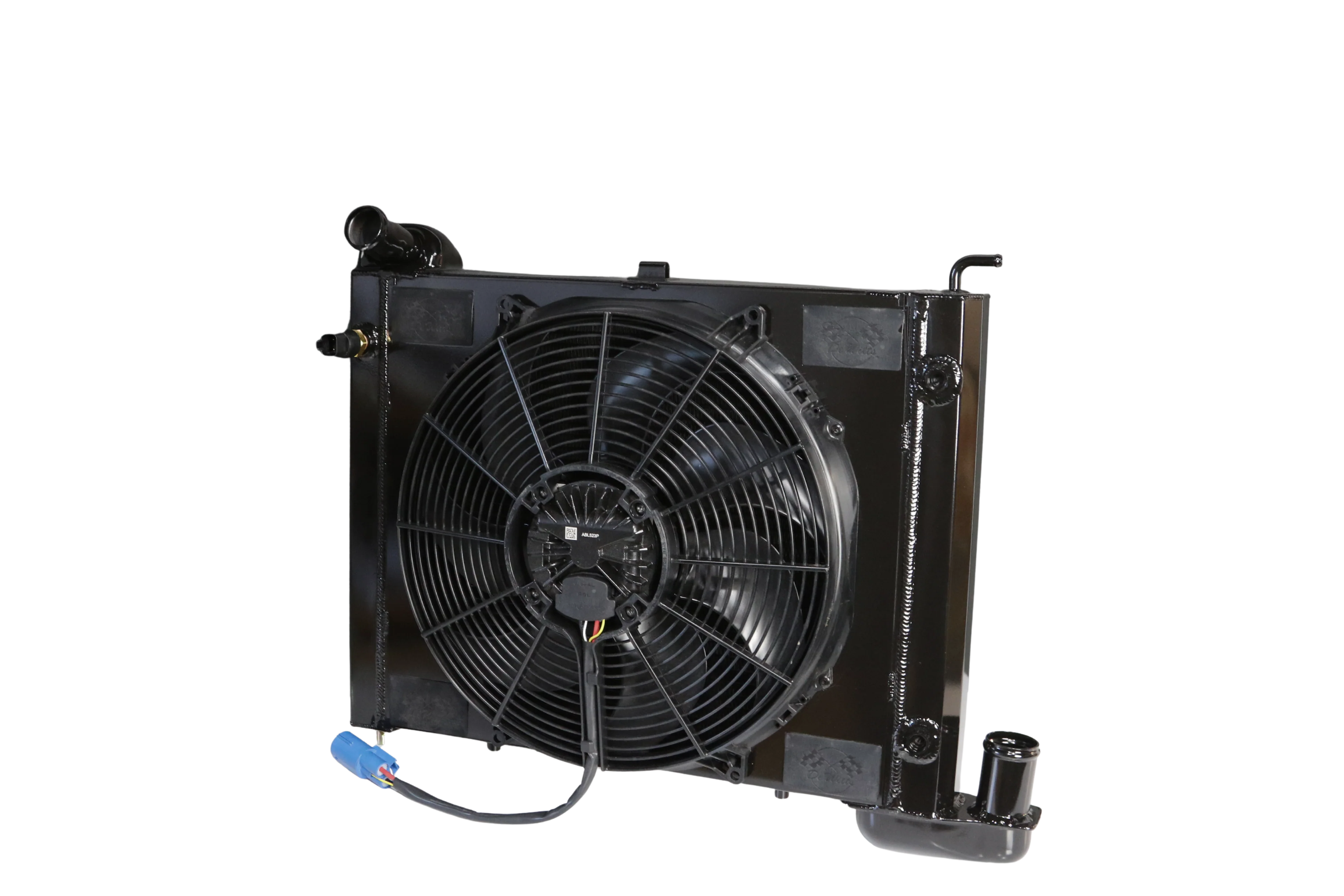

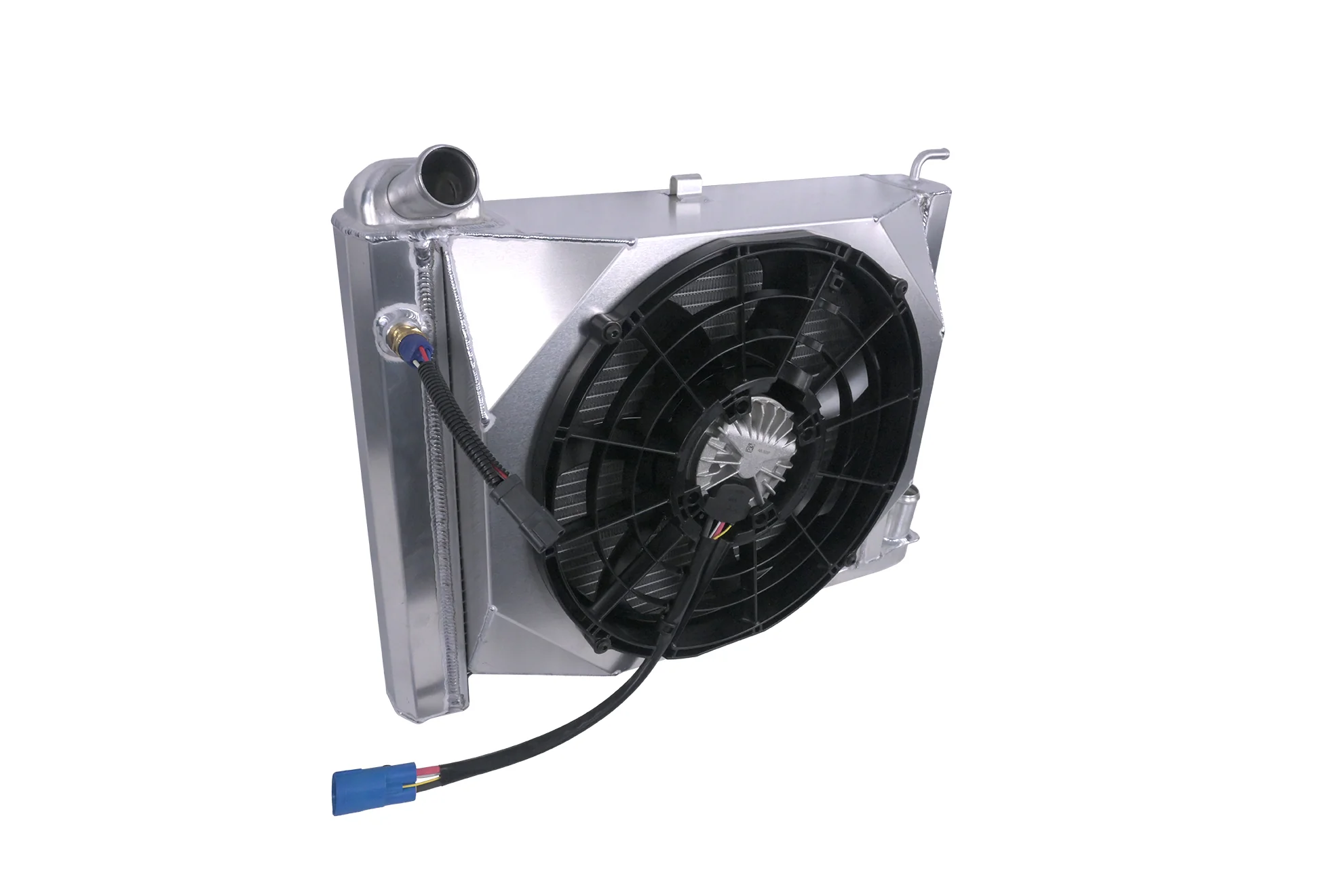

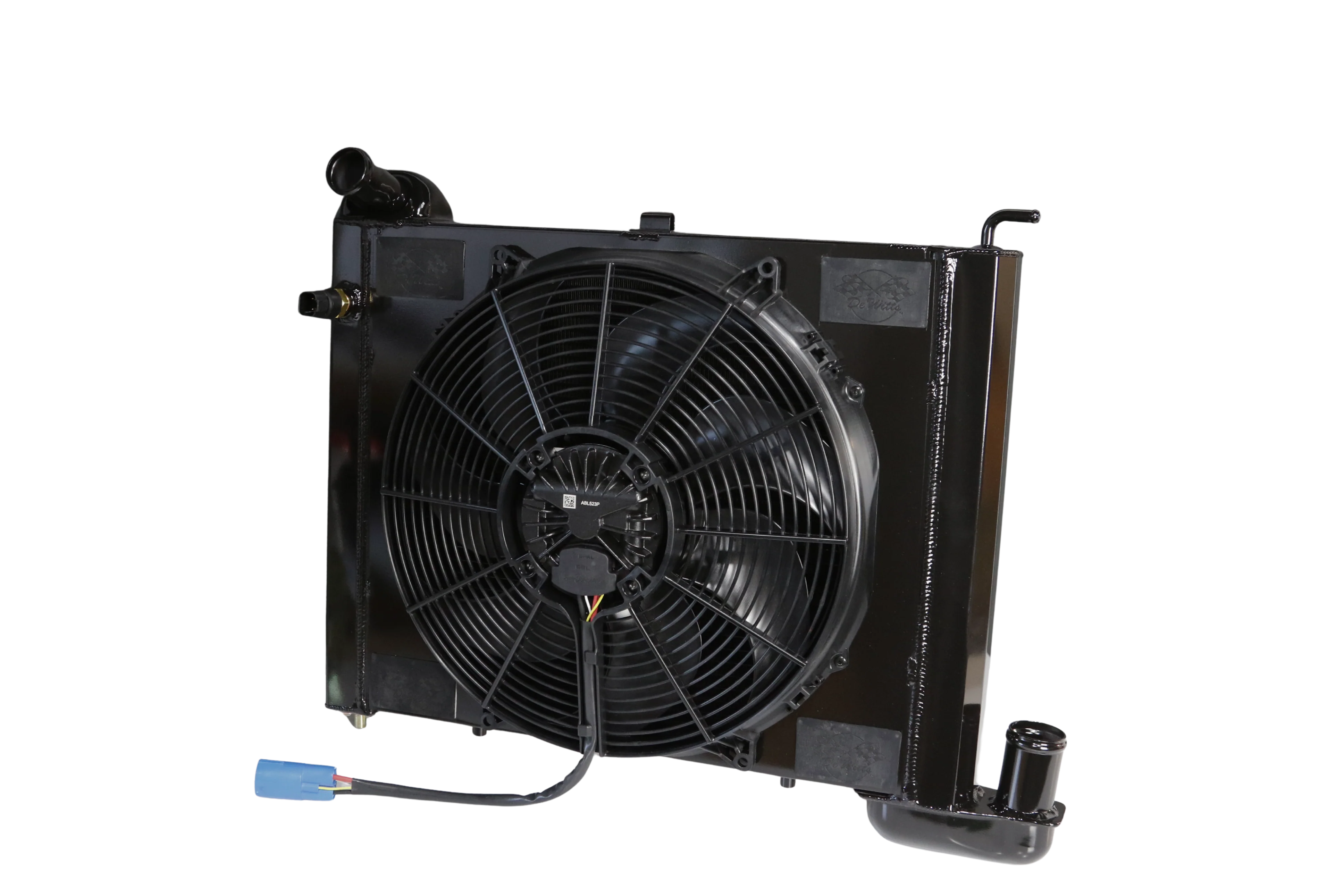

Brushless Fan
Brushless Fan Standard Features
- PWM and analog input for continuous adjustment of fan speed.
- Open collector diagnostic output.
- Meets EMC directives: 2006/28/EC.
- Low weight motor.
- Higher ambient working temperature.
- Protection against:
- Overheating
- Overheating
- Overcurrent and overvoltage
- Mechanical overload
- Locked rotor
- Load dump
Brushless Fan Advanced Features
- High efficiency and low power consumption.
- Low noise, vibration, and harshness.
- Electronic controls with on-board diagnostics.
- Motor with integrated electronics.
- Battery compensation system.
- Proprietary sine-wave sensorless drive (SPAL-patent).
- Low inertia inner rotor design.
